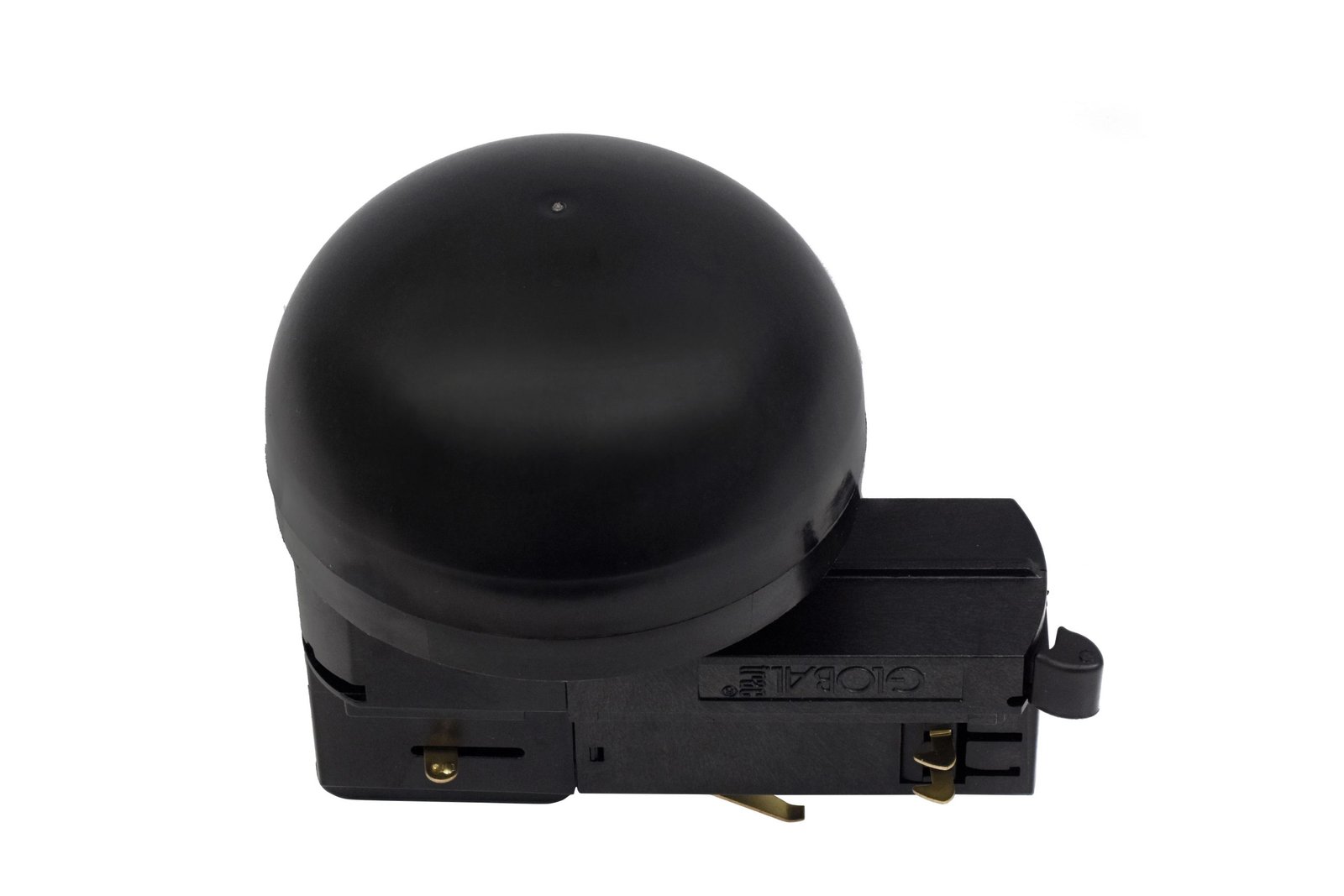

CBU-A2D-20-TRACK

The A2D controller performs two functions at once: It creates a wireless CASAMBI network node and a wired DALI infrastructure serving up to 10 luminaires. The device has a built-in DALI power supply giving 20mA of current to your luminaires.

Categories , Brand:

>>Download Datasheet

The controller plugs directly into the 3-phase bus + DALI line (Global XTSC standard). When plugged into the bus, the controller controls up to 10 luminaires in DALI Broadcast mode. It is worth noting that this product also supports the DALI DT8 standard, which makes it possible to control Tunable White and RGB luminaires.

The controller can only work with DALI or DALI2 luminaires, but Casambi switches and sensors as well as dedicated EnOcean switches can be used in the lighting system. This approach greatly simplifies the lighting project.

In the Casambi application, the controller is visible as a single control point so paired Casambi sensors affect all luminaires connected to it. If you want to control luminaires independently use CBU-1016-40-TRACK.

You’ll access all functions through the dedicated Casambi APP software (downloadable on the Apple App Store or Google Play Store).

CBU-A2D-20-TRACK

The A2D controller performs two functions at once: It creates a wireless CASAMBI network node and a wired DALI infrastructure serving up to 10 luminaires. The device has a built-in DALI power supply giving 20mA of current to your luminaires.

The controller plugs directly into the 3-phase bus + DALI line (Global XTSC standard). When plugged into the bus, the controller controls up to 10 luminaires in DALI Broadcast mode. It is worth noting that this product also supports the DALI DT8 standard, which makes it possible to control Tunable White and RGB luminaires.

The controller can only work with DALI or DALI2 luminaires, but Casambi switches and sensors as well as dedicated EnOcean switches can be used in the lighting system. This approach greatly simplifies the lighting project.

In the Casambi application, the controller is visible as a single control point so paired Casambi sensors affect all luminaires connected to it. If you want to control luminaires independently use CBU-1016-40-TRACK.

You’ll access all functions through the dedicated Casambi APP software (downloadable on the Apple App Store or Google Play Store).
